Instructions Truck T12 MkII

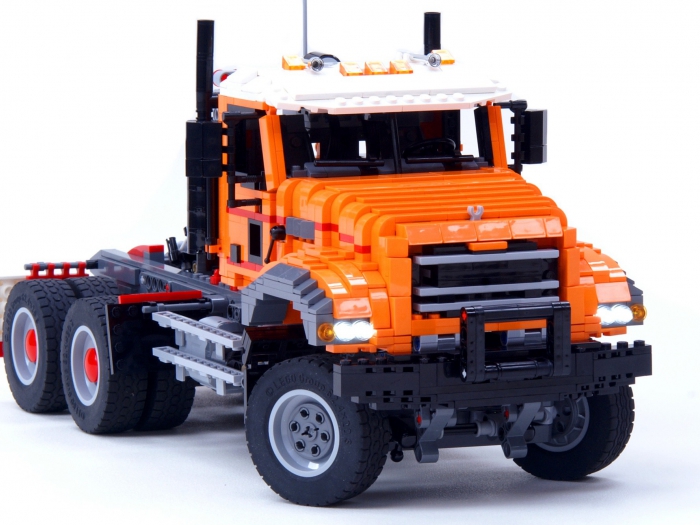

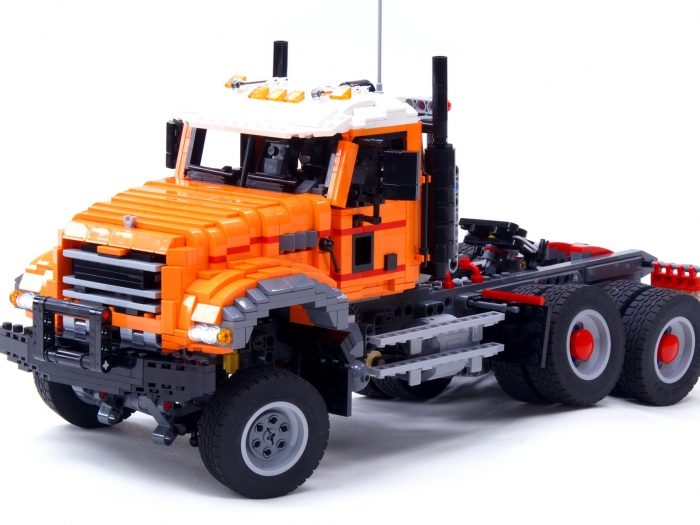

These building instructions make you build "Truck T12 MkII" a fully brick build motorized and Infra Red remote controlled scale model resembling a 6x4 day cab truck. Both the looks and specifications are adjusted to match lowboy ”Trailer Tr4 MkII” and the optional jeep and booster ”Trailer Tr4 MkII Add1”. This rather heavy lowboy trailer combination, which might include a load, requires some extra power.

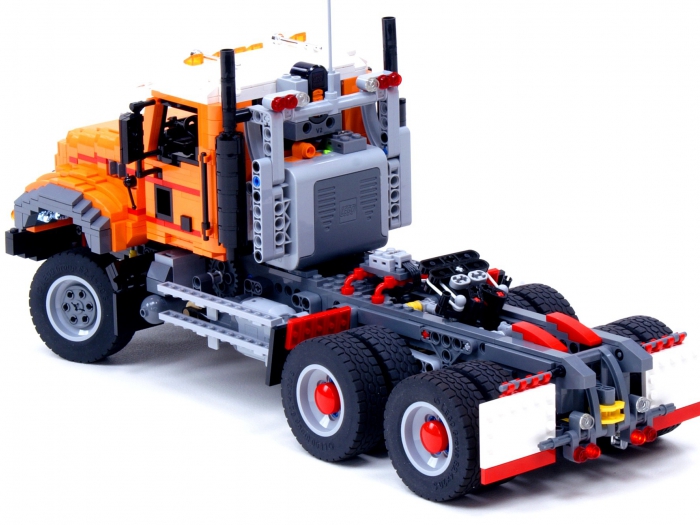

The truck features: solid axle suspension on all axles of which the rear axle uses tandem bogie suspension, driving with power transmitted independently to both rear axles, reduced speed to increase power/torque, Ackerman geometry on steering axle, servo powered steering, fully functional fifth wheel, fifth wheel slider, modeled engine, detailed cabin interior.
PDF --_----- Downloadable PDF file building instructions
Printed ----- Spiral bound printed building instructions

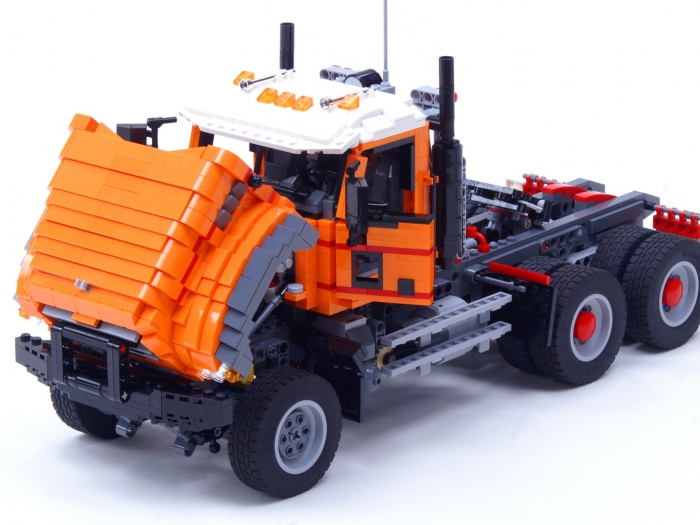

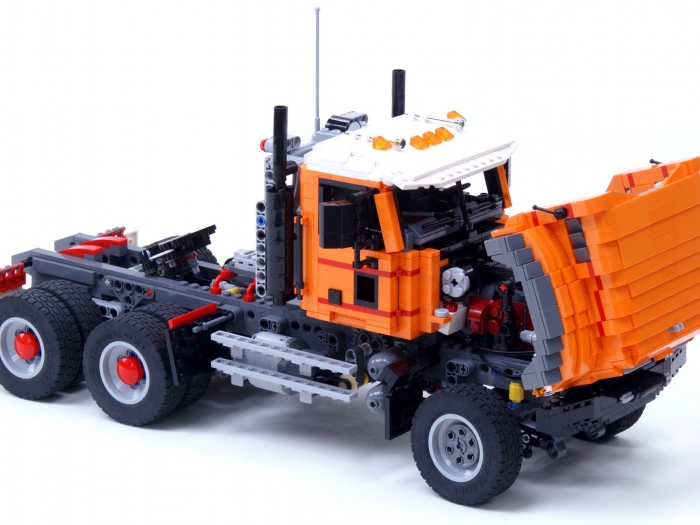

This model is powered by a Mack MP8 engine which is visible with the hood opened. This power source is an inline 6 cylinder engine with a displacement of 13.0 L. The horsepower range is from 425 up to 505 HP and this engine has a torque range from 1570 to 1760.
This detailed engine is nice to build and to give it those realistic looks a total number of 55 parts is used. It is detailed with for example engine oil dipstick, fan, fan belt, pulleys, hoses, oil filters including by-pass oil filter and a turbo.
Together with much more engine bay details which are added the looks are phenomenal. These include break fluid reservoir, windshield washer container, internal air cleaner system with tubing and steering shaft.
