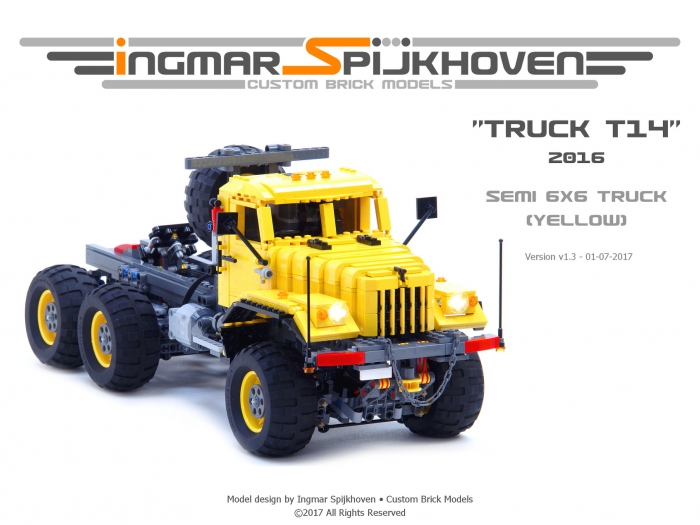

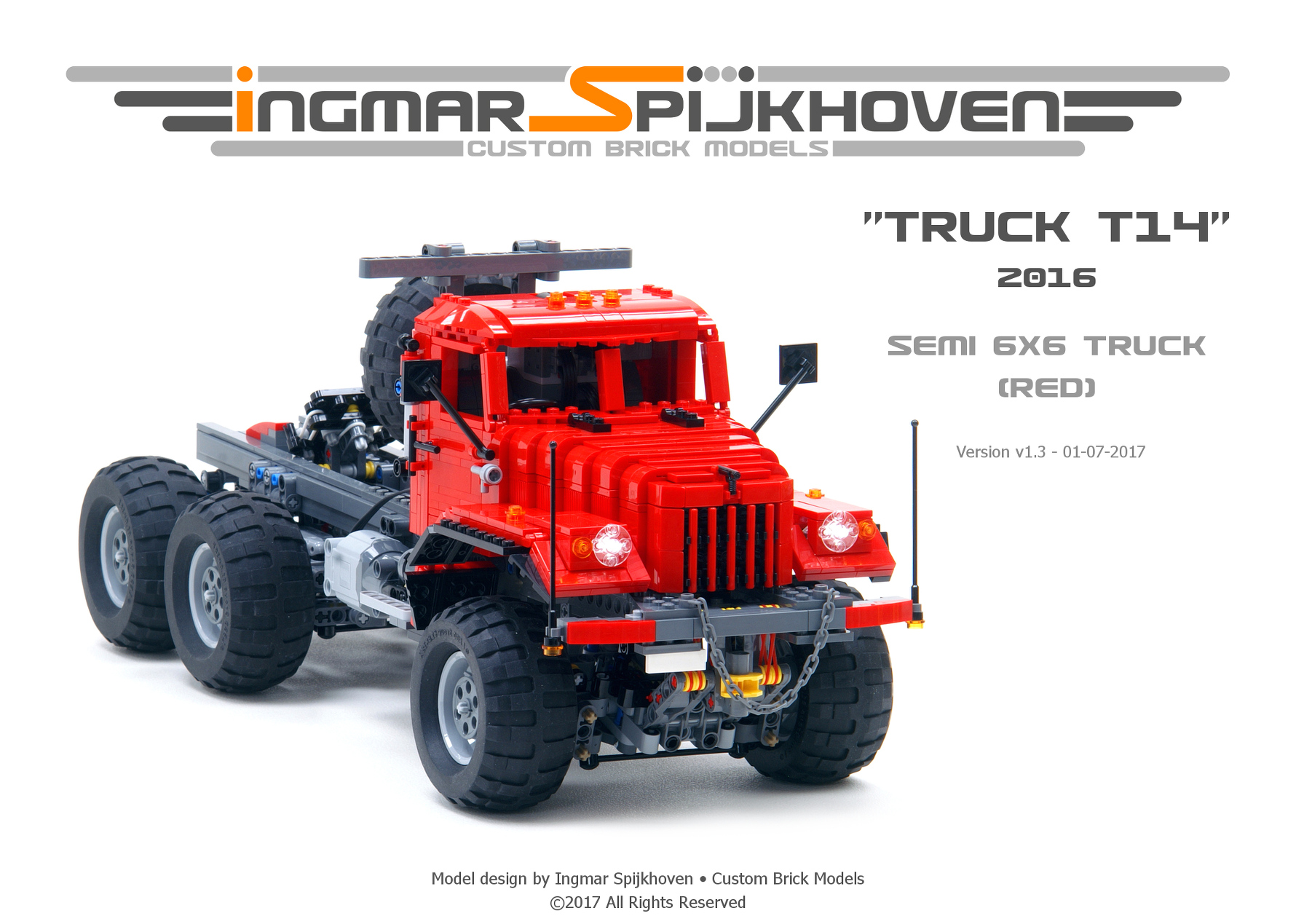

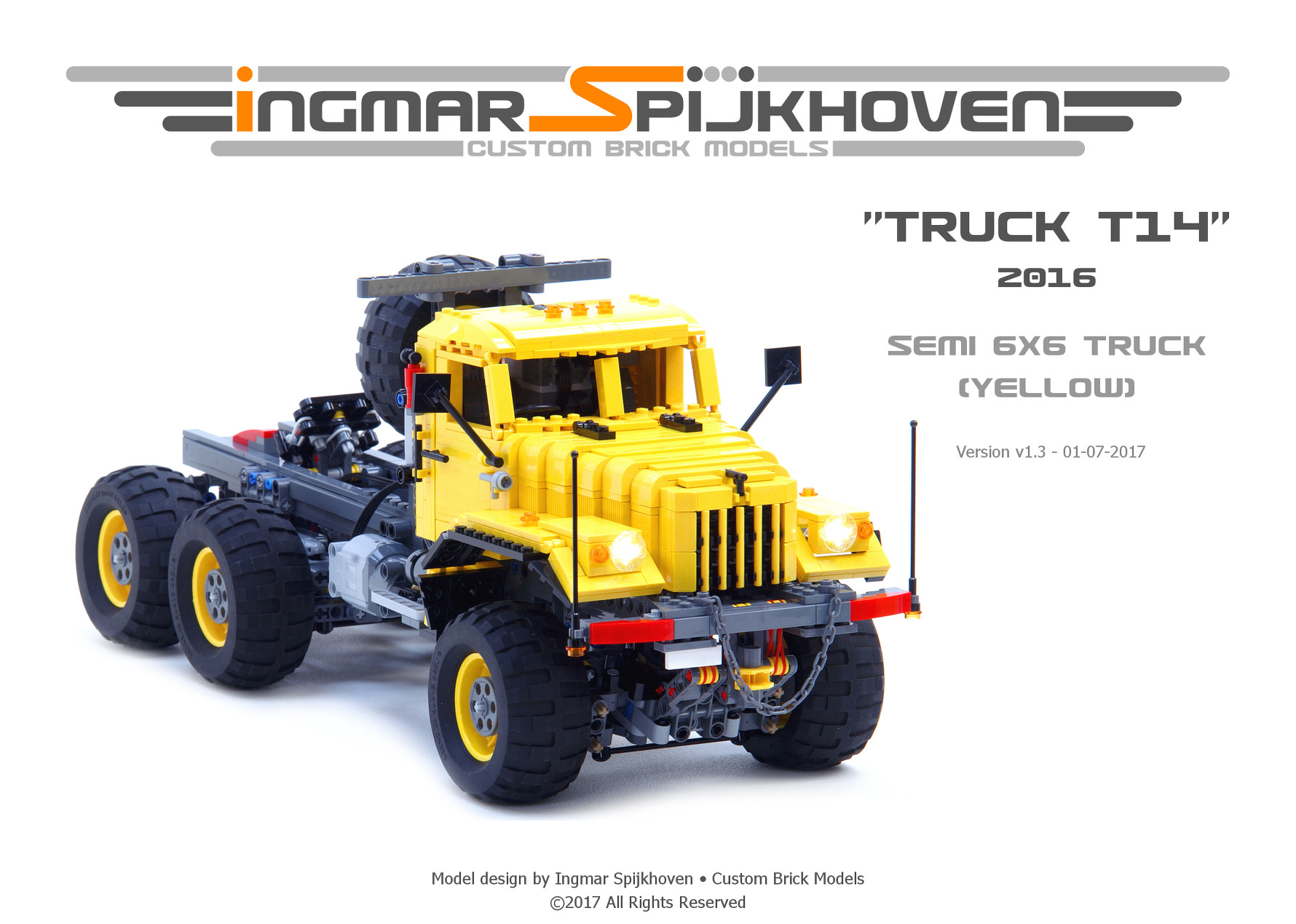

Instructions Truck T14
These building instructions make you build "Truck T14” is a fully brick build motorized and Infra Red remote controlled scale model resembling a 6x6 off-road truck. Powered by V8 4-stroke diesel engine with a displacement of 14.9 L with horsepower range up to 240. The truck’s modelled engine together with both heavy duty flexing front and rear axles, fifth wheel, steps and all electronic components are mounted to its realistic ladder frame.
The truck features: solid axle suspension on all axles of which the rear axles use a tandem bogie suspension, powered driving on all axles 6x6 drive, reduced speed to increase power/torque, servo powered steering, fully functional fifth wheel, modeled V8 engine, detailed cabin interior and two light units.
PDF --_----- Downloadable PDF file building instructions
Printed ----- Spiral bound printed building instructions
As a tribute to this truck this project shows some of the unlimited possibilities. Even though this specific truck was never produced as a civilian truck however after its retirement it has been used as such. Within a couple of minutes it can be changed into one of the four different editions which include:
- Semi-truck with fifth wheel
- Ballast tractor
- Trial Truck
- Log Truck with trailer
The modelled engine is given its realistic looks with detailes such as: engine oil dipstick, fan, fan belt, pulleys, hoses, oil filters and a turbo. Together with much more engine bay details which are added the looks are phenomenal. These include break fluid reservoir, by-pass oil filter, windshield washer container, internal air cleaner and steering shaft.
Even more details are to be found in the drivers cabin. By opening the cabin doors one can can take a closer look. For the driver's comfort the interior has gauges, switches and comfortable seats. Other details are a angled dash and gauge panel, a steering wheel and a gear shift.
