Instructions Truck T19

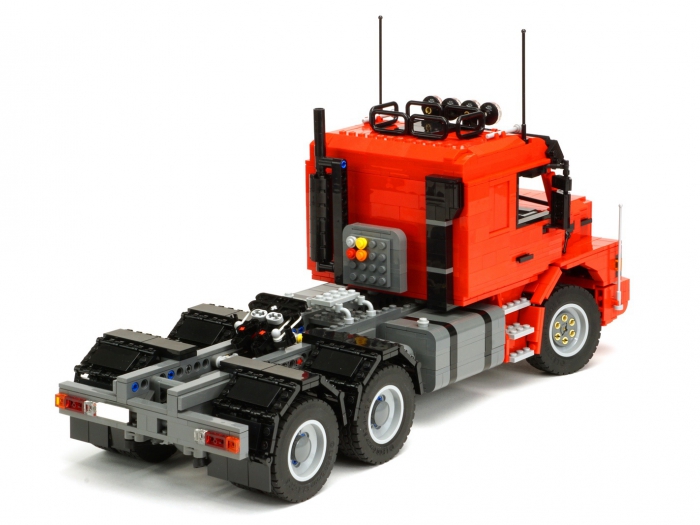

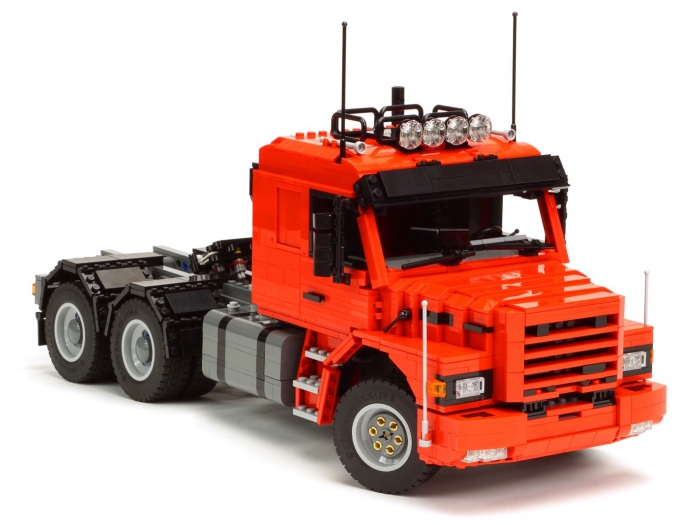

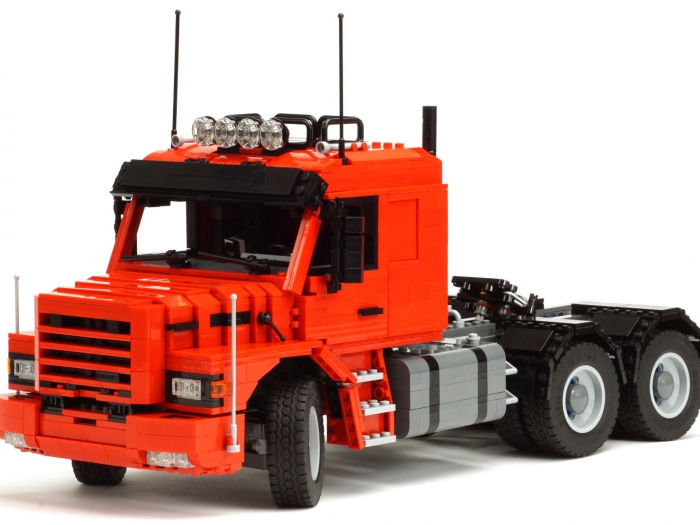

These building instructions make you build "Truck T19" which is a fully brick (genuine new LEGO® parts) build motorized and Infra Red remote controlled scale model resembling a 6x4 Euro style sleeper cab truck. Cool details such as roof rack, functional fifth wheel, sun visor, exhaust stack, modeled V8 engine! You can build this truck with left-hand or right-hand steering. With this option this truck is suitable for both European, Australian and South African trailers.
The truck features: solid axle suspension on all axles of which the rear axle uses tandem bogie suspension, PF powered driving with power transmitted independently to both rear axles, Ackerman geometry on steering axle, Servo powered steering, fully functional fifth wheel, fifth wheel slider, detailed engine bay, modeled V8 engine and detailed cabin interior.
Editions:
PDF --_----- Downloadable PDF file building instructions
Printed ----- Spiral bound printed building instructions
Product information
Model "Truck T19” is a fully brick (genuine new LEGO® parts) build motorized and Infra Red remote controlled scale model resembling a Euro style sleeper cab semi-truck. Powered by a V8 engine with a displacement of 14.0 L with horsepower range from 400 up to 500. The truck’s modelled engine together with both front and rear axles, steps, air cylinders, battery box, fuel tanks and all electronic components are mounted to its realistic ladder frame.
The truck features: solid axle suspension on all axles of which the rear axle uses tandem bogie suspension, PF powered driving with power transmitted independently to both rear axles, Ackerman geometry on steering axle, Servo powered steering, fully functional fifth wheel, fifth wheel slider, detailed engine bay, modeled V8 engine and detailed cabin interior.
For it's steering system we've designed and developed some very cool 3D printed parts. Originally it was designed with the use of genuine LEGO® parts but are no longer produced. To not compromise the functionality and realism of the steering system it has been replaced by two custom gears and one custom steering link.
Also can it be build left-hand or right-hand steering. With this option this truck is suitable for both European, Australian and South African trailers.

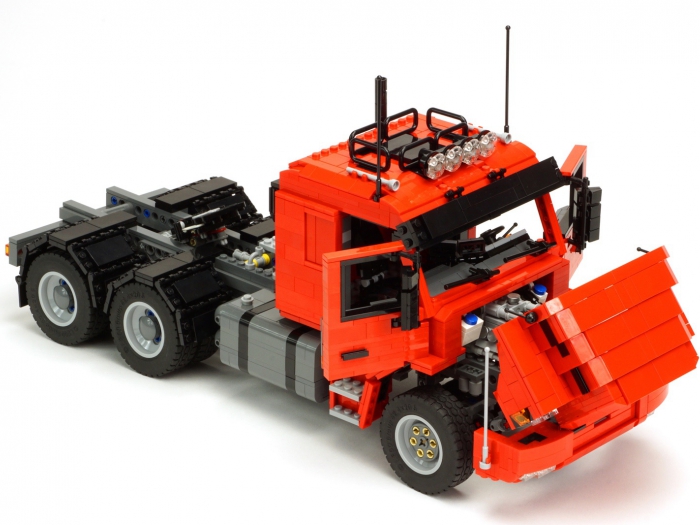

This truck's modelled engine is given its realistic looks with detailes such as: engine oil dipstick, fan, fan belt, pulleys, hoses, oil filters and a turbo. Together with much more engine bay details which are added the looks are phenomenal. These include break fluid reservoir, by-pass oil filter, windshield washer container and steering shaft.
Even more details are to be found in the drivers cabin. By opening the cabin doors one can can take a closer look. For the driver's comfort the interior has gauges, switches and comfortable seats. Other details are a angled dash and gauge panel, a steering wheel and a gear shift.
Product specs
Reviews
No reviews have been written, be the first!
